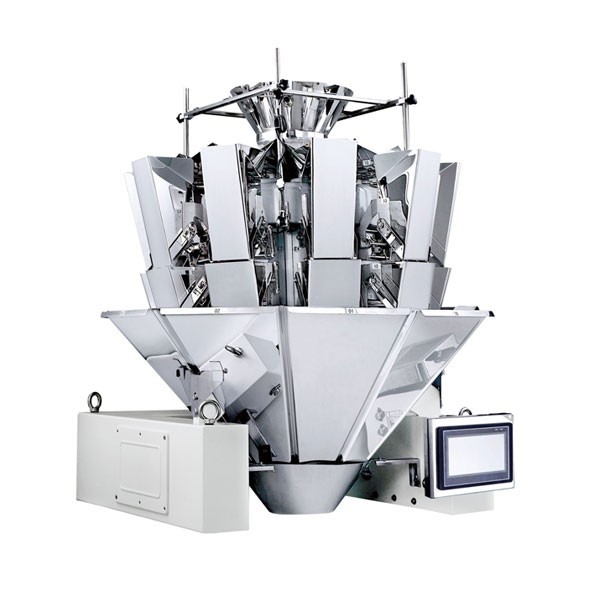

  5. 18 Heads High Speed Multihead Wegiher
  • 18 Heads High Speed Multihead Wegiher
  • 18 Heads High Speed Multihead Wegiher
  • 18 Heads High Speed Multihead Wegiher
  • 18 Heads High Speed Multihead Wegiher
18 Heads High Speed Multihead Wegiher 18 Heads High Speed Multihead Wegiher 18 Heads High Speed Multihead Wegiher 18 Heads High Speed Multihead Wegiher

18 Heads High Speed Multihead Wegiher

Inquiry Send Email

Description

Features:

1.Special load cell with high precision and high standard;

2.Intelligent fault alarm, convenient maintenance;

3.High speed staggered discharging function, effectively prevent blocking materials;

4.With high integrated modular design makes mechanical and electronic components easy to install and maintenance;

5.Modbus industry standard communication protocol, realize the interface combination of multihead weigher and packaging machine;

Mechanical  Character:

1.High speed hoppers without springs to avoid the broken spring falling into packages;

2.New springless actuator design makes weighing more stable and fast;

3.Double-layer discharge chutes with double high speed timing hoppers to feed packaging machine in turn,surmount the speed problems of discharging chute feeding time.

4.Machine case and middle seat integral welding greatly enhance the strength of the machine, makes the hopper shorter stable time.
18 heads high speed multihead wegiher

Model A14 A18
Identify Code A14-3-1 A18-3-1
Weighing Range 10-1000g 10-1000g
Accuracy X(0.5) X(0.5)
Max Speed 130P/M 180P/M
Hopper Volume 2.0L
Control Panel 9.7" Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System Step Motor
Power Requirement 220V/1000W/ 50/60Hz /10A 220V/1000W/ 50/60Hz /10A
Packing Dimension(mm) 1760(L)*1190(W)*1390(H) 1950(L)*1650(W)*1650(H)
Gross Weight 500kg 800kg
